YUCHENGTECH Antistatic Air Gun New Ionizing Air Gun Sprayer (with high Voltage Generator(220V))

Technical parameters: Primary volts: 220V ACSecondary output volts: 4 kV ACSecondary short cct. Current: 2 mAVA rating: 3VA .No. of load circuits: 2Fuse: 0.2AMaximum load: ≤5m*2Working Environment:0-45°C, R.H＜80％Working Air Pressure: 0-7 bar(recommend：2-3 bar)Air Output: 3.5 CFM @ 0.7 bars, 5.3 CFM@3.5barSwitch/lamp: With indicating lamp and switchTest ResultsTest Voltage: 1KV-100V Operating Voltage: 4.0kVTest Distance: 300mm 600mm 900mmDecay Time: positive 0.4s 0.5s 1.1s negative 0.4s 0.5s 0.9sOffset voltage: Positive -23V -18V +14V Negative -29V -16V +17V Physical parameters: Diameter of air hose : 8mmHV cable length:2.7mSize of H.V.Transformer: 200mm(L)×135mm(W)×89mm(H)Approx weight: 2.8kgPackage includes: 1* ionizer gun 1* high voltage generator1* air hose Note: This product needs to be used with your air compressor

• High performance and excellent ion balance
• Dispel the static in the general range effectively fast
• Good grounding protection and excellent ion balance.

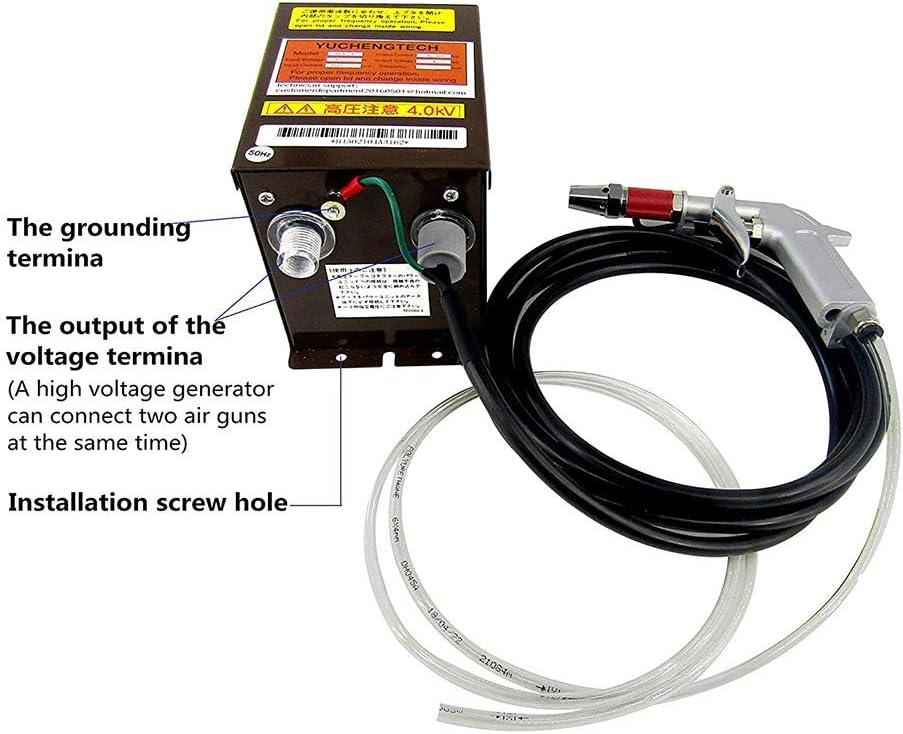

• A high voltage generator can connect two air guns at the same time.

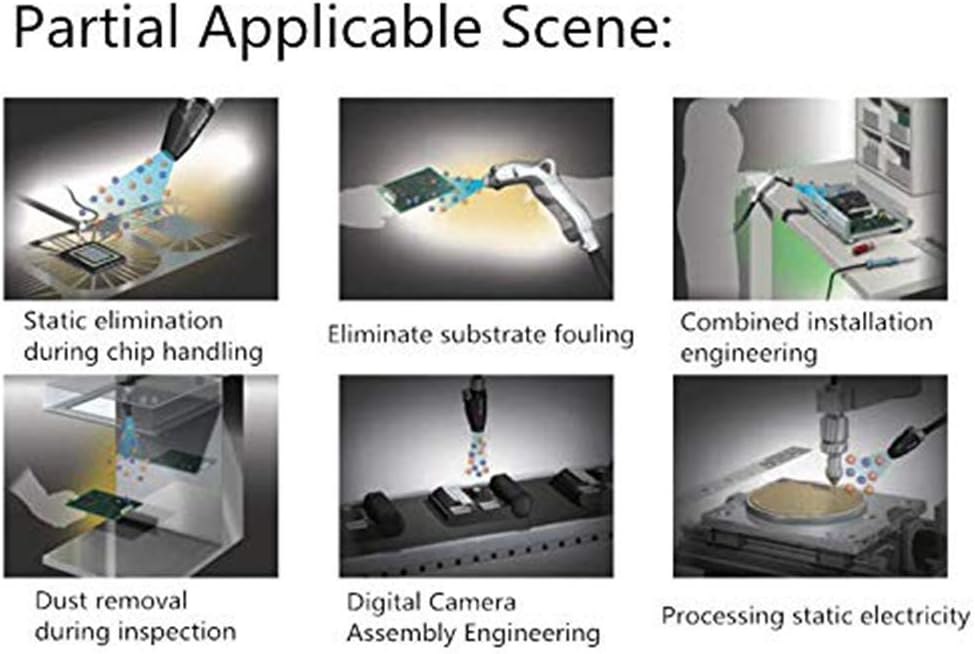

• Widely used in electronics assembly, biological products, pharmaceutical, injection molding, printing and other industries.
