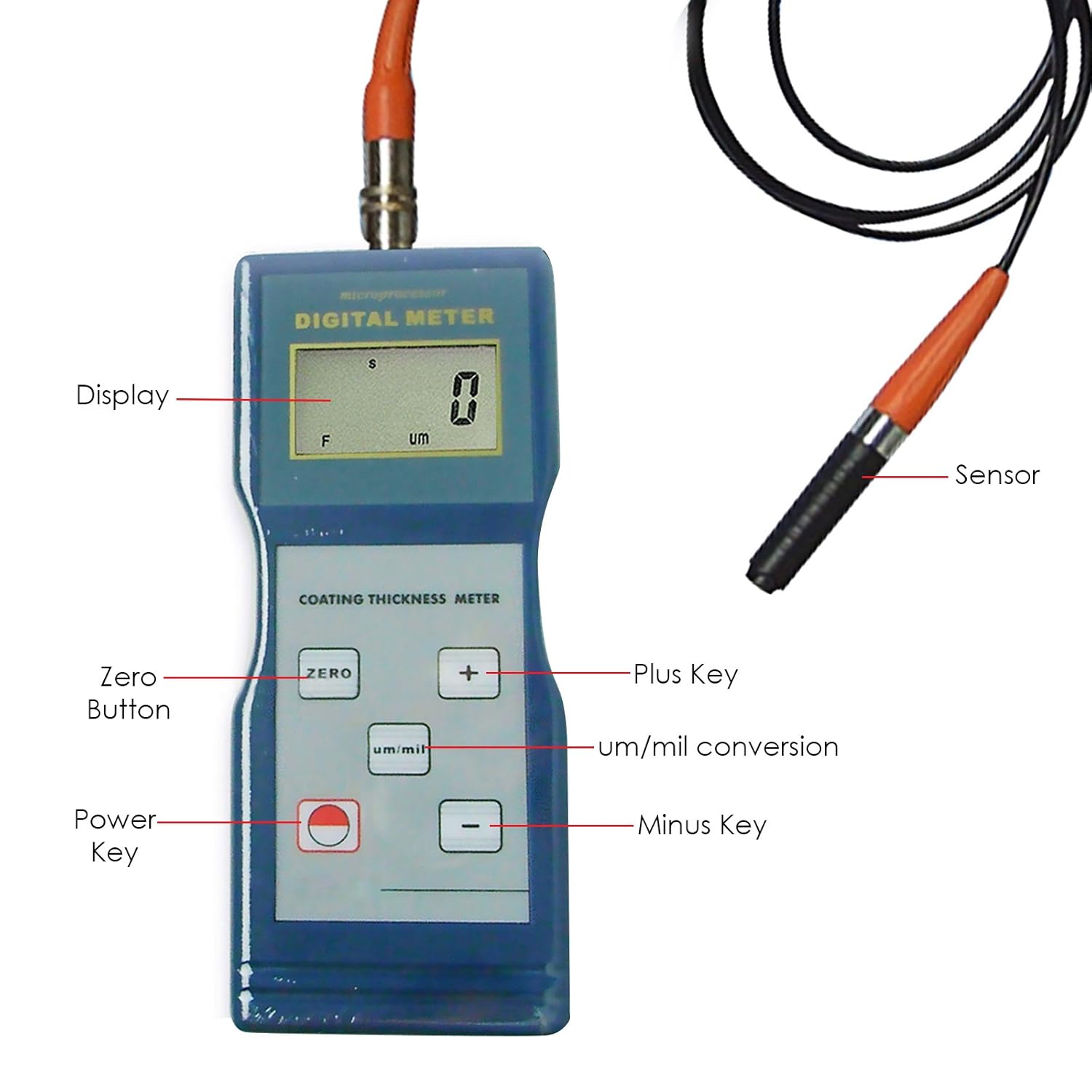

Digital Meter Coating Thickness Iron Probes 0~1000um/0~40mil Substrate & + Aluminum Tool F Automotive FN

Features: Has CE marking, conforms with the essential health and safety requirements set out by the European Directives Conforms to international standards and passed the standards of ISO2178 Widely used to measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome, etc. ) on magnetic materials (e.g. iron, nickle, etc. ) often used to measure the thickness of plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper, etc. Specifications: Measuring Range:0~1000µm / 0~40mil Resolution: 0.1µm (0~99.9µm) 1µm (over 100µm) Accuracy: ±1~3%n or ±2.5µm (whichever is greater) Min. measuring area: 6mm Min. sample thickness: 0.3mm Metric/ imperial: convertible Auto power off Automatic Calibration (when no other metal substrate near the probe sensor upon switching on) Display: 4 digits, 10mm LCD. Operating conditions: ***Temperature 0~50°C (or 32~122 in °F) ***Humidity <80% ;; Battery indicator: Low Battery Indicator Power supply: 4 x AA 1.5V battery Dimensions (main unit): 67 x 168 x 31mm Weight: ***Main Unit: 155g (battery excluded) ***Whole Packaging: 690g (battery excluded) Package Weight: 0.73kg Package Size: 25cm x 13cm x 8cm Set includes: 1 x Digital Coating Thickness Gauge 1 x F type Probe with 1M cable 1 x Iron Substrate Block 4 x Calibration Foil 1 x Plastic Pouch 1 x Carrying case English Instruction manual Standard Factory Package

• Measuring Range:0~1000µm / 0~40mil
• Resolution:*0.1 um(0-99.9um) , 1um (over 100um)
• Accuracy: ±1~3%n or ±2.5µm (whichever is greater)
• Operating Principle: magnetic induction & eddy current (F & NF)
• Operating conditions: <br>Temperature 0~50°C (or 32~122 in °F) <br>Humidity <80%
