5/8"-18 Rod End Threaded Bushing Kit,LH & RH 5/8" Thread x 0.650" I.D Bore Polyurethane Bushings for Suspension or Replace Worn Out Rod Ends and Suspension Bushings-1Set

Unleash the full potential of your off-road, race, or custom build. The YIFUOK 5/8"-18 Rod End Threaded Bushing Kit is engineered for enthusiasts and professionals who demand precision, strength, and adjustability. Whether you're building a triangulated 4-link suspension, fine-tuning your steering geometry, or constructing a custom chassis, these high-performance rod ends provide the rigid, zero-play connection needed for superior handling and durability.Technical Specifications:Thread Size: 5/8" - 18 Bore Diameter: .625 inchesBody Material: Carbon Steel, Zinc-PlatedBushing Material: Reinforced PolyurethaneLoad Rating: Designed for high-stress applications (Specific kN rating varies; built for automotive/off-road use)Common Applications:Off-Road & 4x4 Vehicles: Suspension links, steering stabilizers, track bar ends.Race & Performance Cars: Push/pull throttle linkages, shifters, suspension components.Motorcycles & ATVs: Custom rear suspension links, steering heads.Industrial Machinery: Actuator ends, hydraulic cylinder joints, automation equipment.

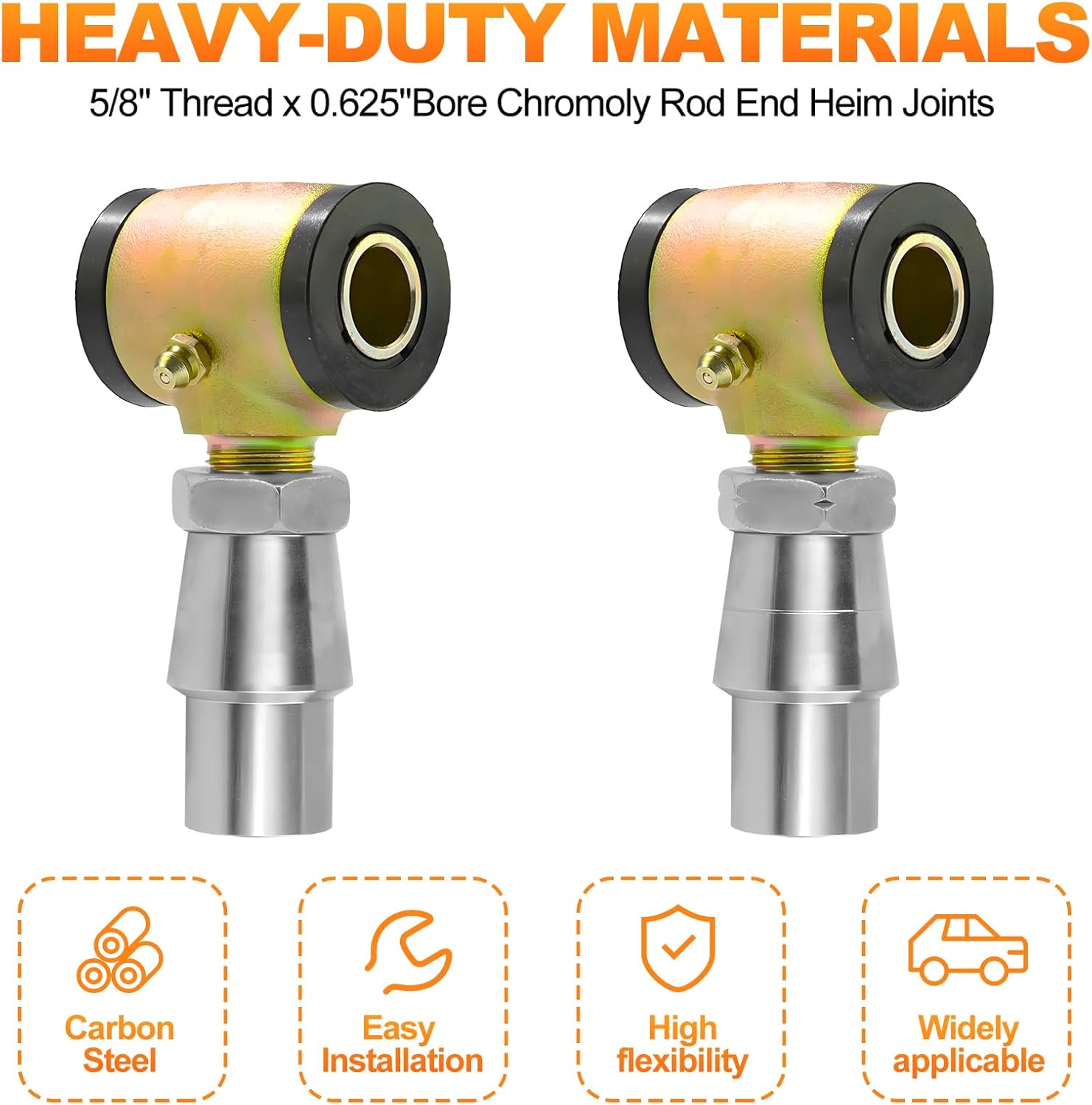

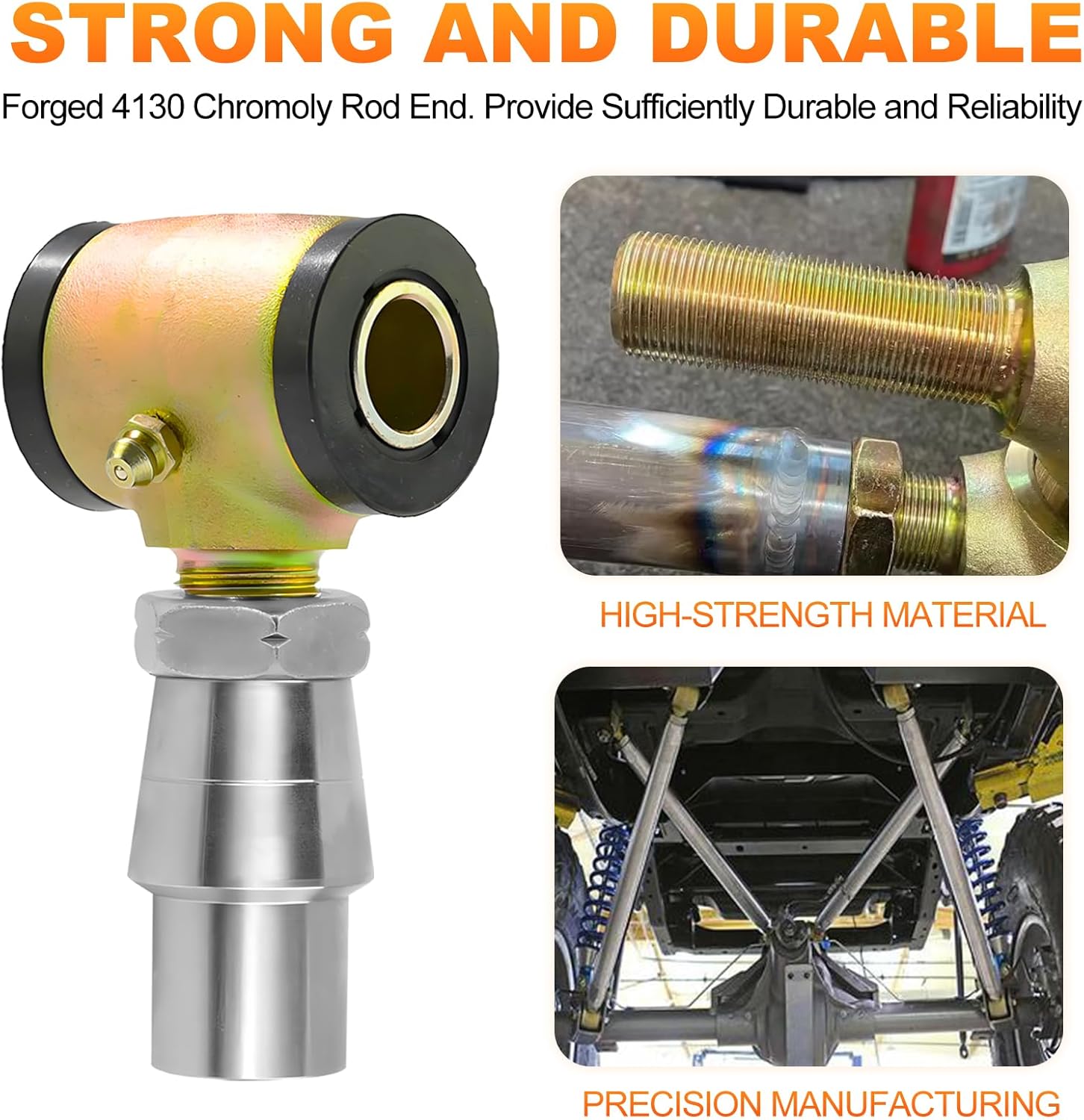

• INDUSTRIAL-STRENGTH CHROMOLY CONSTRUCTION：The 5/8" (.625") bore Heim Joint,forged from heat-treated Chromoly Steel.The heim joint rod ends is with 5/8” shaft with 18tpi.5/8” bore hold is the strongest way to make this heim.Lock Nut: Thread: 5/8"-18. Fits Tube Size:1 1/4" OD. x .120" Wall.note: please confirm the size specification before purchasing.
• HIGH LOAD CAPACITY & DURABILITY：Built to withstand extreme forces, the rod ends are constructed from high-grade carbon steel with a zinc-plated finish for corrosion resistance. The 5/8" shank diameter and large spherical ball are designed for high load capacity,boasting a load capacity of 17,955 lbs.making them ideal for demanding applications like suspension links and steering systems.
• REINFORCED POLYURETHANE BUSHINGS：Includes durable, yellow polyurethane bushings that press into the rod end housing. These bushings protect the joint from contaminants like dirt and grit, significantly extending service life. They also help dampen vibrations and reduce wear, offering an excellent balance between a rigid connection and serviceability.
• SECURE & ADJUSTABLE ASSEMBLY：The 5/8"-18 Male threads on the joint and matching jam nuts allow for easy length adjustment and a vibration-proof lock. The heavy-duty tube adapters are pre-threaded to weld directly into your DOM tubing,creating a clean and incredibly strong link.
• VERSATILE FOR DEMANDING APPLICATIONS：This robust kit is engineered for a wide range of high-performance uses. Perfect for building or upgrading:Off-Road Steering Systems (Tie Rods, Drag Links)；Suspension Links (Panhard/Track Bars, 3-Links, 4-Links)；Traction Bars & Ladder Bars；Throttle Linkages & Shifters
